jsPlayCommand: xTalk Scripted Music Notation in JavaScript

The jsPlayCommand library is a JavaScript implementation of the play command from HyperTalk, which used a kind of notation now known in the xTalk community as scripted music notation. HyperTalk used sound resources, but with our Modern Technology™ * we can use MIDI!

You can play around with jsPlayCommand using the editor below. Load a preset song or enter your own using scripted music notation. The equivalent traditional music notation will appear above the text field as you type. Scroll down the page for a reference to scripted music notation. Then, hit the Play button to see how it sounds! You will have to either use Google Chrome or install Jazz-Soft.net Jazz-Plugin to be able to actually play the notes. Alternatively, you can click the Generate MIDI File button and download your creation as a standard MIDI file you can play anywhere!

Load preset:

Using Scripted Music Notation

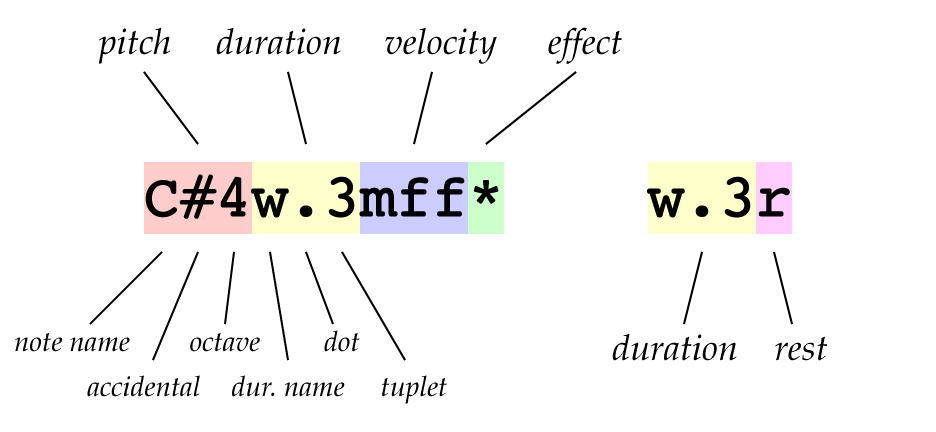

Scripted music notation uses a sequence of note strings separated by whitespace to represent a sequence of notes. Each note string representing a sounded note is composed of four parts: a pitch, a duration, a velocity, and an effect. A note string representing a rest is composed of two parts: a duration and the letter r.

The pitch is specified as a note name (C, D, E, F, G, A, B), followed by zero or more b or # symbols (representing flats and sharps respectively), optionally followed by an octave number (00, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9) (where octave 4 is the octave starting with middle C and containing A440). Alternatively, the pitch may be given as the letter M, N, or P followed by the MIDI value; M60 is equivalent to C4 and M69 is equivalent to A4. If the note value or octave is not specified, the previous value is used.

The duration is specified as one of the following letters, followed by zero or more : symbols (which double the note value), . symbols (to create a dotted note), or digits 1 through 9 (to create a tuplet note). (Note that a digit will create an individual note in a tuplet, not the whole tuplet.)

`z`	octuple whole note
`l`	sextuple whole note
`i`	quadruple whole note
`u`	double whole note

`w`	whole note
`h`	half note
`q`	quarter note
`e`	eighth note

`s`	16th note
`t`	32nd note
`x`	64th note
`o`	128th note

Alternatively, the duration may be given as the letter d followed by the duration of the note in 64ths of a quarter note. If the duration is not specified, the previous value is used.

The velocity is specified as one of the following strings, from softest to loudest: ppp, pp, p, mpp, mp, m, mf, mff, f, ff, fff. Alternatively, the velocity may be given as the letter v followed by the MIDI value from 0 (completely silent) to 127 (the loudest, equivalent to fff). If the velocity is not specified, the previous value is used.

The effect is specified as zero or more of the following symbols.

`,`	The note is counted for its full duration, but only played for half its duration (stoccato).
`*`	The note keeps playing even after its duration is passed, until a `!` is encountered (fermata).
`!`	Stops a note started by `*` after the specified duration has passed.
`+`	The next note will start playing simultaneously with this note (chord).

If the effect is not specified, no effect is applied.

Using jsPlayCommand

To use jsPlayCommand, embed the following script tags on your page:

<script type="text/javascript" src="http://www.kreativekorp.com/lib/jsPlayCommand/WebMIDIAPI.js"></script>
<script type="text/javascript" src="http://www.kreativekorp.com/lib/jsPlayCommand/jsPlayCommand.js"></script>

Or, if you prefer to host it yourself, download jsPlayCommand.zip.

You may need to install Jazz-Soft.net Jazz-Plugin to be able to use jsPlayCommand (unless, of course, your browser already supports the Web MIDI API, currently found only in Chrome Canary).

Before jsPlayCommand can actually play any notes, it must be initialized using the following APIs:

jsPlayCommand.start(success, failure): Requests access to MIDI controllers and initializes jsPlayCommand. The success function is called if this completed successfully. Otherwise, the failure function is called.
jsPlayCommand.running(): Returns true if jsPlayCommand.start() has been called successfully.
jsPlayCommand.stop(): Resets jsPlayCommand to its uninitialized state.

Once jsPlayCommand is initialized, use one of the following APIs:

jsPlayCommand.play(instrument, notes) jsPlayCommand.play(instrument, tempo, notes) jsPlayCommand.play(channel, instrument, tempo, notes) jsPlayCommand.play(bankSelect, channel, instrument, tempo, notes) jsPlayCommand.play(output, bankSelect, channel, instrument, tempo, notes)

Plays a sequence of notes on a MIDI device. The sequence is played asynchronously, so this API returns almost immediately. The parameters to this API are:

Output is one of the devices returned by jsPlayCommand.outputs().

BankSelect is the bank select mode, which is one of the following:

`jsPlayCommand.BANK_SELECT_GM`	General MIDI mode. No bank select commands are sent.
`jsPlayCommand.BANK_SELECT_GS`	GS mode. CC0 is used for bank select; CC32 is not used.
`jsPlayCommand.BANK_SELECT_XG`	XG mode. CC32 is used for bank select; CC0 is not used.
`jsPlayCommand.BANK_SELECT_MMA`	MMA or GM2 mode. CC0 is used for MSB; CC32 is used for LSB.

Channel is the MIDI channel number from 0 to 15.

Instrument is an integer, an object with a bank and instrument, or one of the following instrument names:

0	Acoustic Grand Piano
1	Bright Acoustic Piano
2	Electric Grand Piano
3	Honky-Tonk Piano
4	Electric Piano 1
5	Electric Piano 2
6	Harpsichord
7	Clavi
8	Celesta
9	Glockenspiel
10	Music Box
11	Vibraphone
12	Marimba
13	Xylophone
14	Tubular Bells
15	Dulcimer
16	Drawbar Organ
17	Percussive Organ
18	Rock Organ
19	Church Organ
20	Reed Organ
21	Accordion
22	Harmonica
23	Tango Accordion
24	Acoustic Guitar (Nylon)
25	Acoustic Guitar (Steel)
26	Electric Guitar (Jazz)
27	Electric Guitar (Clean)
28	Electric Guitar (Muted)
29	Overdriven Guitar
30	Distortion Guitar
31	Guitar Harmonics

32	Acoustic Bass
33	Electric Bass (Finger)
34	Electric Bass (Pick)
35	Fretless Bass
36	Slap Bass 1
37	Slap Bass 2
38	Synth Bass 1
39	Synth Bass 2
40	Violin
41	Viola
42	Cello
43	Contrabass
44	Tremolo Strings
45	Pizzicato Strings
46	Orchestral Harp
47	Timpani
48	String Ensemble 1
49	String Ensemble 2
50	Synth Strings 1
51	Synth Strings 2
52	Choir Aahs
53	Voice Oohs
54	Synth Voice
55	Orchestra Hit
56	Trumpet
57	Trombone
58	Tuba
59	Muted Trumpet
60	French Horn
61	Brass Section
62	Synth Brass 1
63	Synth Brass 2

64	Soprano Sax
65	Alto Sax
66	Tenor Sax
67	Baritone Sax
68	Oboe
69	English Horn
70	Bassoon
71	Clarinet
72	Piccolo
73	Flute
74	Recorder
75	Pan Flute
76	Blown Bottle
77	Shakuhachi
78	Whistle
79	Ocarina
80	Lead 1 (Square)
81	Lead 2 (Sawtooth)
82	Lead 3 (Calliope)
83	Lead 4 (Chiff)
84	Lead 5 (Charang)
85	Lead 6 (Voice)
86	Lead 7 (Fifths)
87	Lead 8 (Bass + Lead)
88	Pad 1 (New Age)
89	Pad 2 (Warm)
90	Pad 3 (Polysynth)
91	Pad 4 (Choir)
92	Pad 5 (Bowed)
93	Pad 6 (Metallic)
94	Pad 7 (Halo)
95	Pad 8 (Sweep)

96	FX 1 (Rain)
97	FX 2 (Soundtrack)
98	FX 3 (Crystal)
99	FX 4 (Atmosphere)
100	FX 5 (Brightness)
101	FX 6 (Goblins)
102	FX 7 (Echoes)
103	FX 8 (Sci-Fi)
104	Sitar
105	Banjo
106	Shamisen
107	Koto
108	Kalimba
109	Bagpipe
110	Fiddle
111	Shanai
112	Tinkle Bell
113	Agogo
114	Steel Drums
115	Woodblock
116	Taiko Drum
117	Melodic Tom
118	Synth Drum
119	Reverse Cymbal
120	Guitar Fret Noise
121	Breath Noise
122	Seashore
123	Bird Tweet
124	Telephone Ring
125	Helicopter
126	Applause
127	Gunshot

When matching an instrument name, case, whitespace, and punctuation are ignored, so "Alto Sax", " alto_sax ", and "ALTO.SAX" all map to instrument 65.

Tempo is the tempo of the note sequence in beats per minute.
Notes is a sequence of notes in scripted music notation.

jsPlayCommand.playMultiple(arguments) jsPlayCommand.playMultiple(arguments, arguments) jsPlayCommand.playMultiple(arguments, arguments, arguments, ...)

Executes several play commands in parallel. Even though the play command is asynchronous, there is still a delay introduced by processing arguments, parsing note strings, and so on; this ensures that all the sequences passed in start playing at exactly the same time. Each argument to this API is an array of arguments as given to jsPlayCommand.play(). If you need to pass in an array of arrays, as this demo does, use jsPlayCommand.playMultiple.apply(jsPlayCommand, arrays).

jsPlayCommand.compile(instrument, notes) jsPlayCommand.compile(instrument, tempo, notes) jsPlayCommand.compile(channel, instrument, tempo, notes) jsPlayCommand.compile(bankSelect, channel, instrument, tempo, notes) jsPlayCommand.compile(trackName, bankSelect, channel, instrument, tempo, notes)

Compiles a sequence of notes into a MIDI file and returns the MIDI file as an array of byte values. The parameters to this API are similar to the parameters to jsPlayCommand.play(), except that a track name is given in place of an output device. This API will always work, independently of jsPlayCommand initialization or MIDI support.

jsPlayCommand.compileMultiple(arguments) jsPlayCommand.compileMultiple(arguments, arguments) jsPlayCommand.compileMultiple(arguments, arguments, arguments, ...)

Compiles multiple sequences of notes into a MIDI file and returns the MIDI file as an array of byte values. The parameters to this API are similar to the parameters to jsPlayCommand.playMultiple(), except that track names are given in place of output devices. This API will always work, independently of jsPlayCommand initialization or MIDI support.

jsPlayCommand.compileBase64(instrument, notes) jsPlayCommand.compileBase64(instrument, tempo, notes) jsPlayCommand.compileBase64(channel, instrument, tempo, notes) jsPlayCommand.compileBase64(bankSelect, channel, instrument, tempo, notes) jsPlayCommand.compileBase64(trackName, bankSelect, channel, instrument, tempo, notes)

Compiles a sequence of notes into a MIDI file and returns the MIDI file as a base64-encoded string. The parameters to this API are similar to the parameters to jsPlayCommand.play(), except that a track name is given in place of an output device. This API will always work, independently of jsPlayCommand initialization or MIDI support.

jsPlayCommand.compileMultipleBase64(arguments) jsPlayCommand.compileMultipleBase64(arguments, arguments) jsPlayCommand.compileMultipleBase64(arguments, arguments, arguments, ...)

Compiles multiple sequences of notes into a MIDI file and returns the MIDI file as a base64-encoded string. The parameters to this API are similar to the parameters to jsPlayCommand.playMultiple(), except that track names are given in place of output devices. This API will always work, independently of jsPlayCommand initialization or MIDI support.

By default, jsPlayCommand uses the first output device it finds, does not use any bank select commands, and plays on channel 0 with instrument 0 at a tempo of 120 bpm, unless a play command specifies otherwise. These defaults can be changed with the following APIs:

jsPlayCommand.outputs()

Returns a list of MIDI output devices where jsPlayCommand can send its output.

jsPlayCommand.getDefaultOutput() jsPlayCommand.setDefaultOutput(output)

Gets or sets the default MIDI output device.

jsPlayCommand.getDefaultBankSelect() jsPlayCommand.setDefaultBankSelect(bankSelect)

Gets or sets the default bank select mode. This must be one of the following:

`jsPlayCommand.BANK_SELECT_GM`	General MIDI mode. No bank select commands are sent.
`jsPlayCommand.BANK_SELECT_GS`	GS mode. CC0 is used for bank select; CC32 is not used.
`jsPlayCommand.BANK_SELECT_XG`	XG mode. CC32 is used for bank select; CC0 is not used.
`jsPlayCommand.BANK_SELECT_MMA`	MMA or GM2 mode. CC0 is used for MSB; CC32 is used for LSB.

jsPlayCommand.getDefaultChannel() jsPlayCommand.setDefaultChannel(channel)

Gets or sets the default MIDI channel.

jsPlayCommand.getDefaultInstrument() jsPlayCommand.setDefaultInstrument(instrument)

Gets or sets the default instrument.

jsPlayCommand.getDefaultTempo() jsPlayCommand.setDefaultTempo(tempo)

Gets or sets the default tempo.

If you would like to play around with the API, there is a jsPlayCommand JSFiddle for you!

Additional Resources

HyperSound is a soundfont recreation of the original three sampled sounds included with HyperCard for use with the play command. The "harpsichord" sound is mapped to bank 73, instrument 6 (Harpsichord); the "boing" sound is mapped to bank 73, instrument 103 (FX 8); the "flute" sound is mapped to bank 73, instrument 73 (Flute). (There is also a GM version with the same mappings in bank 0.) jsPlayCommand recognizes these instruments in bank 73 as "HyperFlute", "HyperBoing", and, naturally, "Hypsichord". You can load these in your synthesizer and your play commands will sound just like they did in HyperCard!

* MIDI (1982) is actually older than HyperTalk (1987). Neither is all that modern.
